Earth Rods & Electrodes

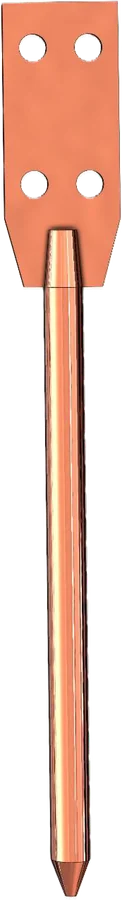

Copper Bonded Earth Rod (Welded Clamp)
Copper Bonded Earth Rods with Welded Clamp have a core of high tensile low carbon steel with each rod made by molecularly bonding 99.9% Pure Electrolytic Copper. They are easy to install and directly can be connected with conductor. Copper Coating ranges from 15 to 254 microns (μm).
- Sizes can be customised
Manufactured by Veraizen Earthing Pvt. Ltd.. Supplied for export by Quantum Indus Exports.
24 part numbers below — use Enquire to add a size to your list.
Specification & part numbers
| Rod Dia (mm) | Total Length (mm) | Part No. |
|---|---|---|
| 14.2 | 1000 | VCBR141Z |
| 14.2 | 2000 | VCBR142Z |
| 14.2 | 3000 | VCBR143Z |
| 16 | 1000 | VCBR161Z |
| 16 | 2000 | VCBR162Z |
| 16 | 3000 | VCBR163Z |
| 17.2 | 1000 | VCBR171Z |
| 17.2 | 2000 | VCBR172Z |
| 17.2 | 3000 | VCBR173Z |
| 20 | 1000 | VCBR201Z |
| 20 | 2000 | VCBR202Z |
| 20 | 3000 | VCBR203Z |
| 25 | 1000 | VCBR251Z |
| 25 | 2000 | VCBR252Z |
| 25 | 3000 | VCBR253Z |
| 32 | 1000 | VCBR321Z |
| 32 | 2000 | VCBR322Z |
| 32 | 3000 | VCBR323Z |
| 38 | 1000 | VCBR381Z |
| 38 | 2000 | VCBR382Z |
| 38 | 3000 | VCBR383Z |
| 40 | 1000 | VCBR401Z |
| 40 | 2000 | VCBR402Z |
| 40 | 3000 | VCBR403Z |
