Strips, Plates & Mesh

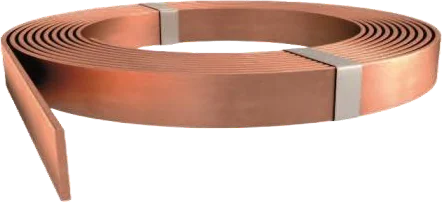

Copper Strip / Flat
High-conductivity copper strips/flats ensure excellent electrical performance, durability, and corrosion resistance for earthing and industrial applications.
- IS 191:2007
- IS-IEC 62305
Manufactured by Veraizen Earthing Pvt. Ltd.. Supplied for export by Quantum Indus Exports.
1 part number below — use Enquire to add a size to your list.
Specification & part numbers
| Width (mm) | 20, 25, 32, 40, 50, 63, 75, & 100 |
|---|---|
| Thickness (mm) | 3, 5, 6, 8, 10 & 12 |
| Standard | IS-IEC 62305 |
| Impulse Current | 100 kA 10/350 µs |
| Grade | High Conductivity Electrolytic (ETP) & Commercial Grade |
| Standard | IS 191:2007 |
| Part No. | VCUS20100Z |
