Lightning Protection & Air Terminals

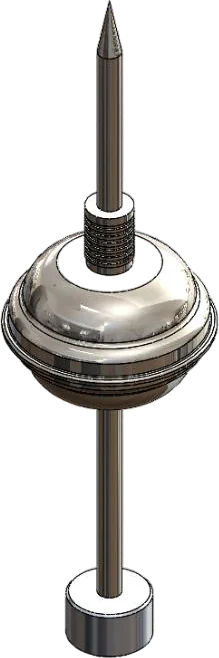

ESE Lightning Arrester (Air Terminal)
Early Streamer Emission (ESE) Lightning Arresters provide advanced protection by emitting a triggering impulse to capture lightning strikes earlier than conventional systems. Designed for wide-area coverage, they offer enhanced safety for buildings, structures, and open spaces. Made from corrosion-resistant materials, ESE arresters ensure long-lasting and reliable performance in all weather conditions VESE2100Z VESE2200Z
- NFC 17-102/2011
Manufactured by Veraizen Earthing Pvt. Ltd.. Supplied for export by Quantum Indus Exports.
2 part numbers below — use Enquire to add a size to your list.
Specification & part numbers
ESE Air Terminal
| Type of Terminal | Electro-atmospheric |
|---|---|
| Standard | NFC 17-102/2011 |
| Current Withstand | 10/350µs – 100 & 200 kA |
| Material | SS316L |
| Part No. | VESE2100Z |
VESE2200Z |
Protection Level
| Height (m) | Level 1 | Level 2 | Level 3 | Level 4 |
|---|---|---|---|---|
| 2 | 32 | 34 | 39 | 43 |
| 3 | 47 | 52 | 58 | 64 |
| 4 | 63 | 69 | 78 | 86 |
| 5 | 79 | 86 | 97 | 107 |
| 7 | 79 | 87 | 98 | 108 |
| 9 | 79 | 88 | 99 | 109 |
| 10 | 79 | 88 | 99 | 109 |
