Test Link
The test link is mainly used to offer a temporary break in the connection to earth allowing the testing of an earth rod whilst disconnecting from the lightning protection system.
- IS-IEC 62305 / 62561
Manufactured by Veraizen Earthing Pvt. Ltd.. Supplied for export by Quantum Indus Exports.
8 part numbers below — use Enquire to add a size to your list.
Specification & part numbers

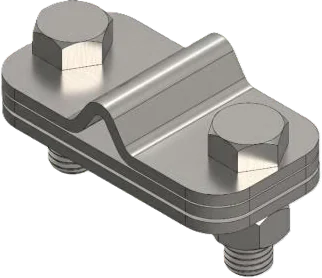

Test Link - Flat to Flat & Round to Round
| Material | Stainless Steel | |
|---|---|---|
| Grade | 304 | |
| Standard | IS-IEC 62305 / 62561 | |
| Impulse Current | 100 kA 10/350 µs | |
| Suitability for round to round | 8 mm | VSSTLRR08Z |
| 10 mm | VSSTLRR10Z | |
| Suitability for flat to flat | 25 mm | VSSTLFF25Z |
| 30 mm | VSSTLFF30Z | |
| Used for disconnecting and testing | ||

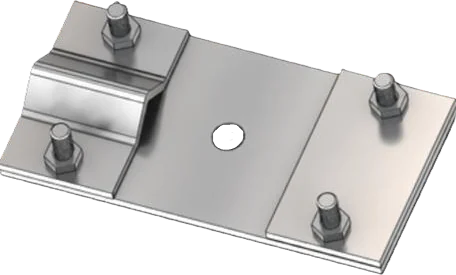

Test Link - Flat to Round
| Material | Stainless Steel | |
|---|---|---|
| Grade | 304 | |
| Standard | IS-IEC 62305 / 62561 | |
| Impulse Current | 100 kA 10/350 µs | |
| Suitability | 25-08 mm | VSSTLFR2508Z |
| 25-10 mm | VSSTLFR2510Z | |
| 30-08 mm | VSSTLFR3008Z | |
| 30-10 mm | VSSTLFR3010Z | |
| Used for disconnecting and testing | ||
